Earthrings Mounting and Installation Kits

Product Overview

Earthrings Kits provide mounting brackets, spacers, screws, washers and related components for LV and HV Earthrings installations.

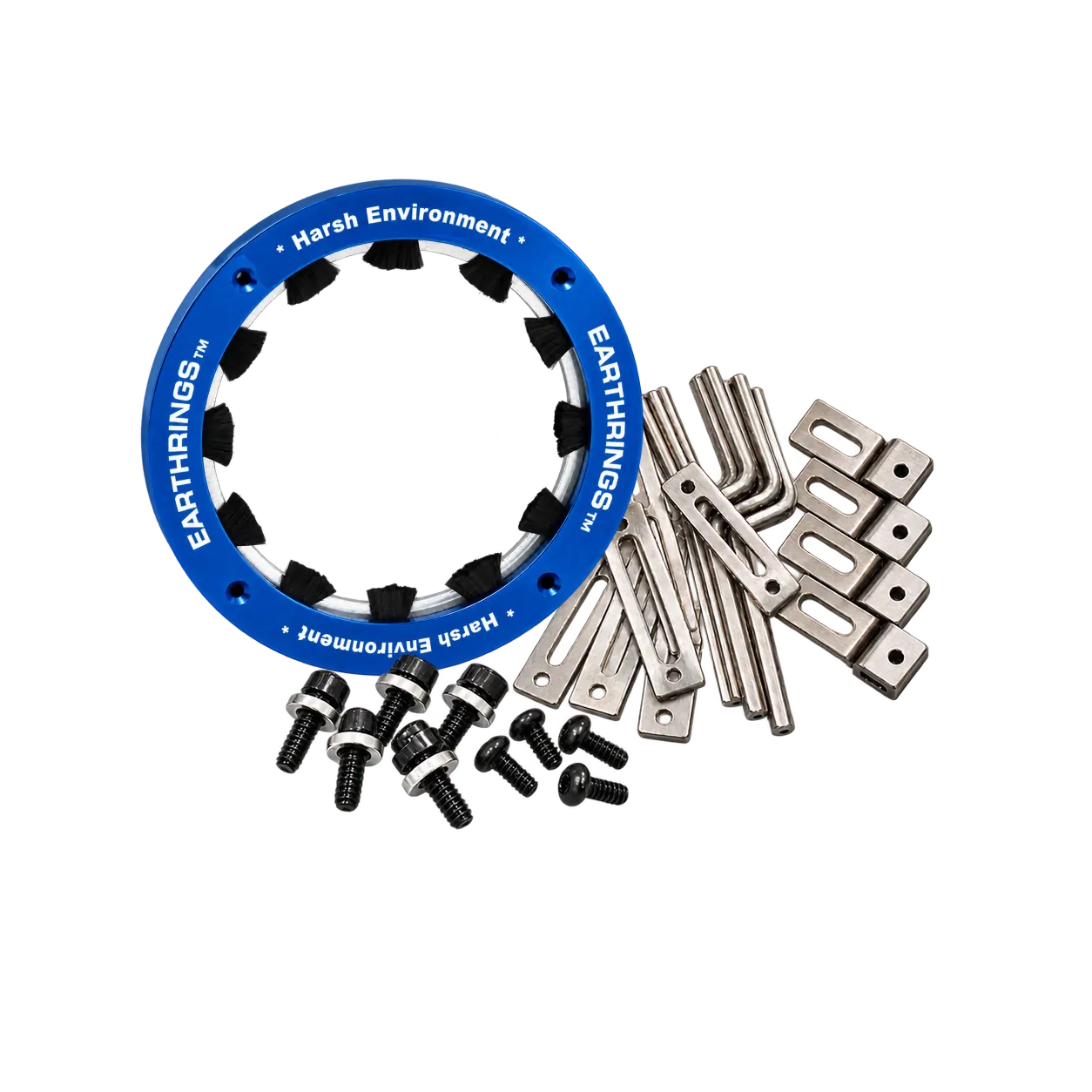

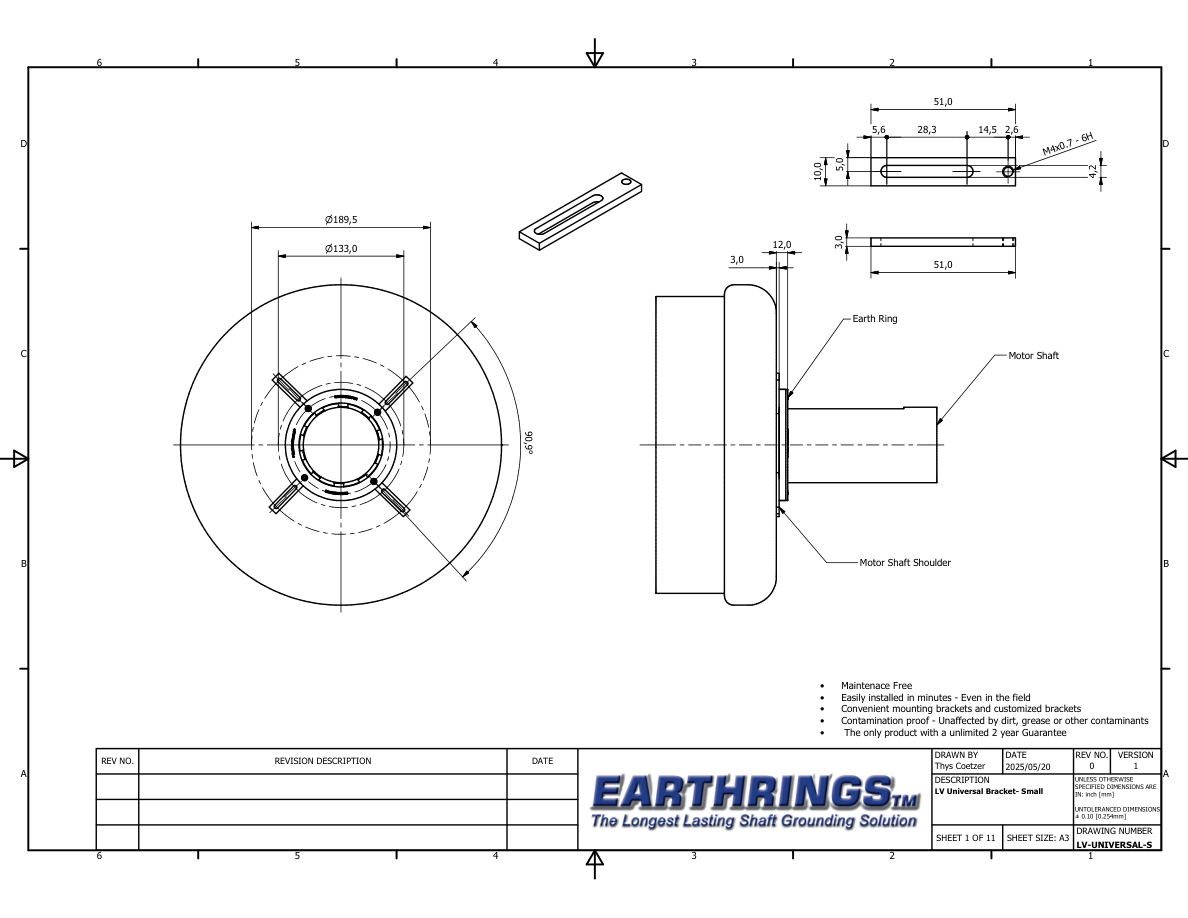

LV Universal Bracket Kit

The Earthring Kits consist of the following items:

• Shaft grounding ring with an aluminium brush holder which helps ensure that the conductive brushes are in contact with the surface of the motor shaft
• Four different sets of mounting brackets (4 brackets per set) which virtually ensures that the Earthring can be fitted to all IEC and NEMA frame sized motors
• Selection of mounting screws and washers

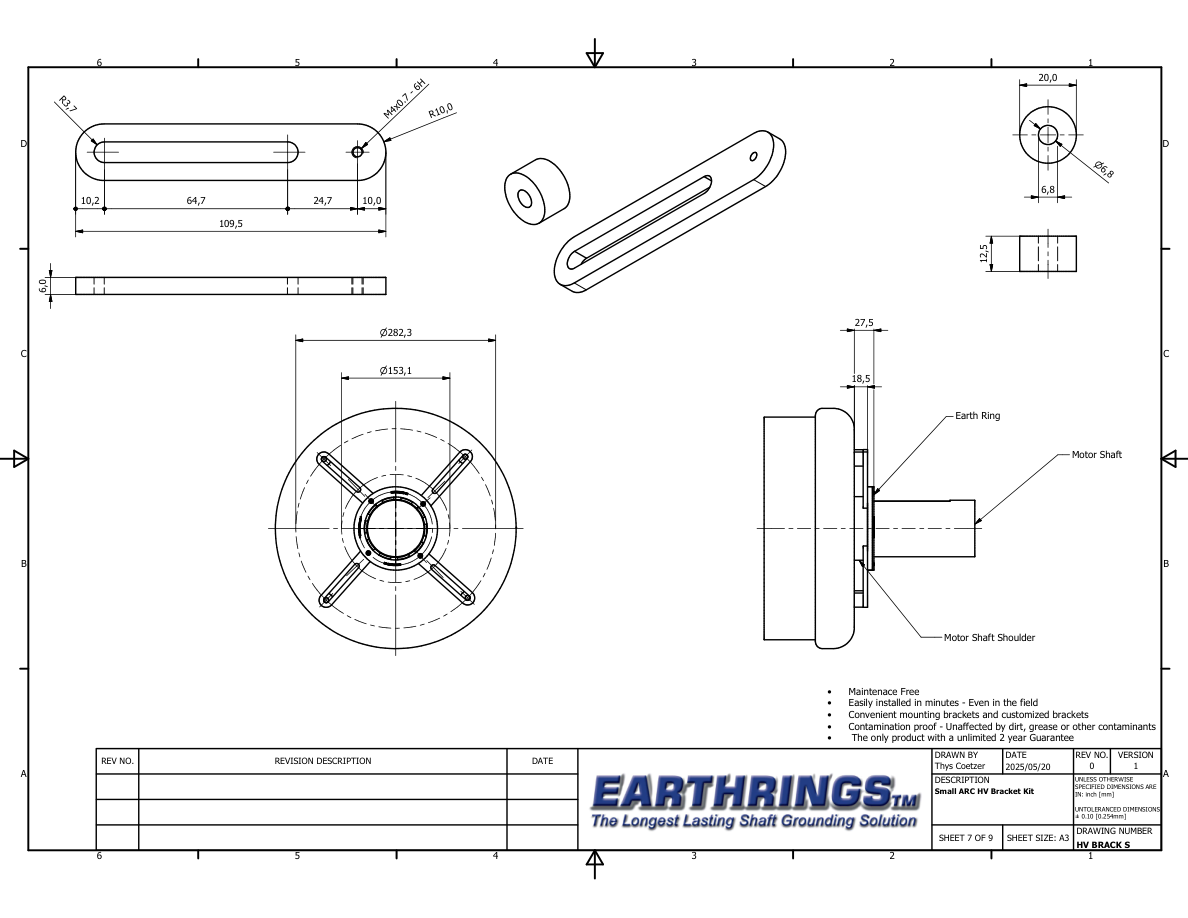

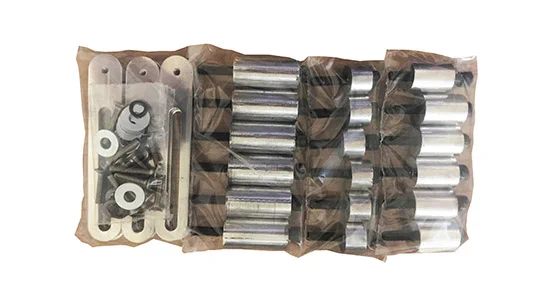

HV Universal Bracket Kit

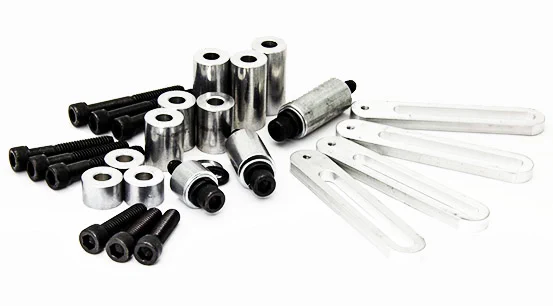

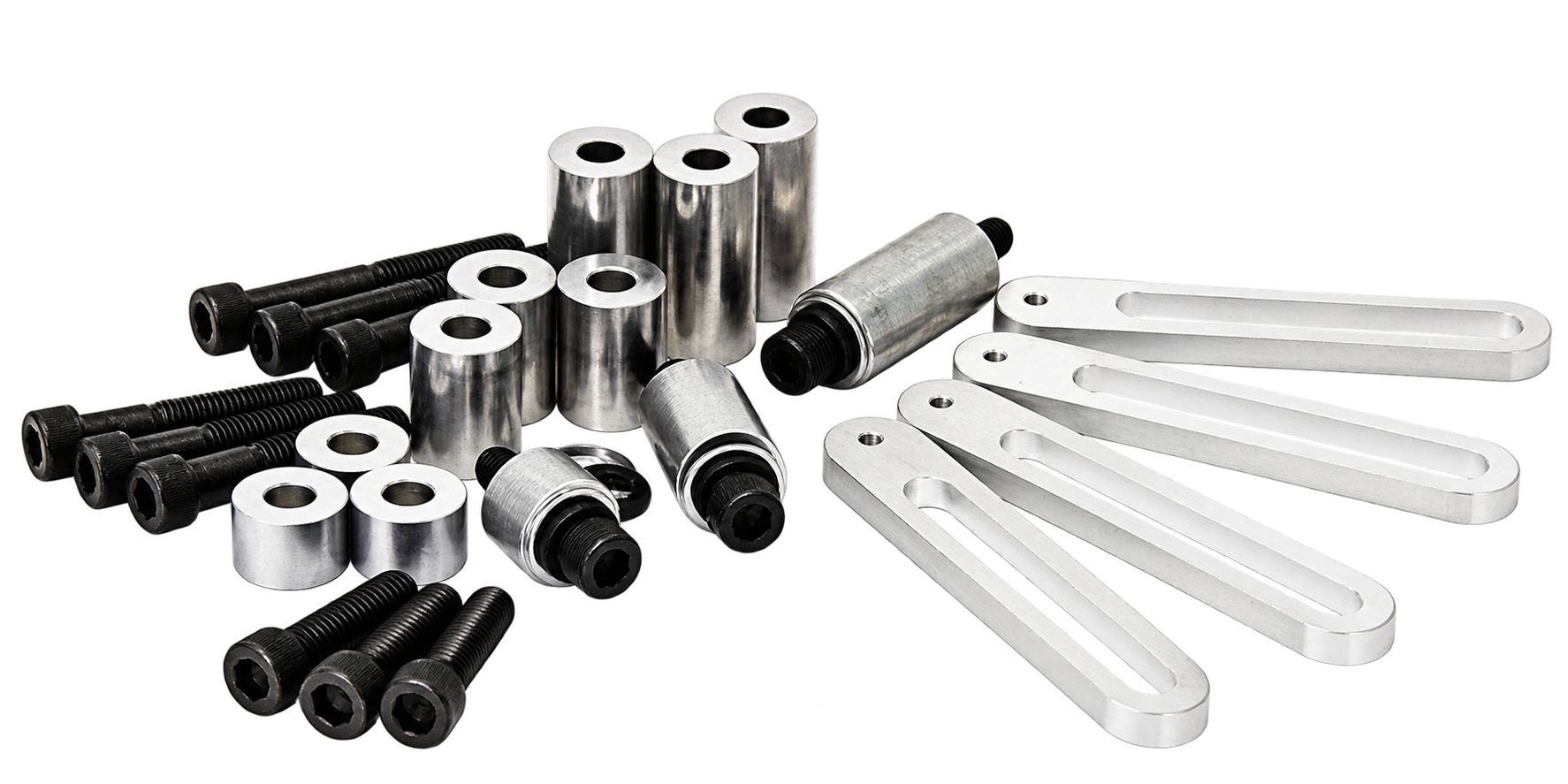

HV Universal Bracket Kit Includes:

• Adjustable Arm (65mm, 100mm or 120mm length)
• 4 of 20mm x 12,5mm spacer
• 4 of 20mm x 25mm spacer
• 4 of 20mm x 38mm spacer
• 4 of M8 x 35mm SHCS
• 4 of M8 x 45mm SHCS
• 4 of M8 x 60mm SHCS
• 4 x Flat washers
• 4 x Lock washers
